MULTICORE WIRES

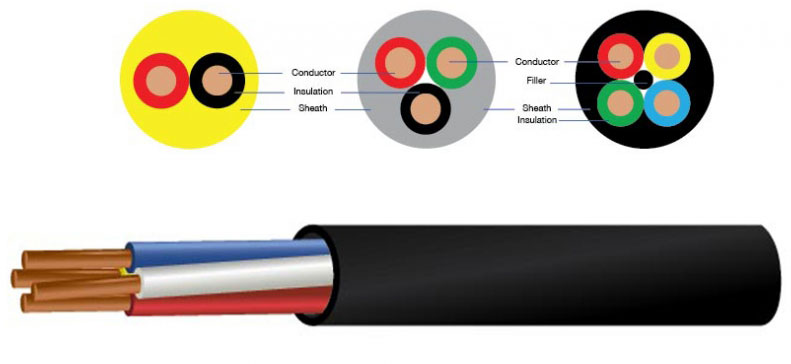

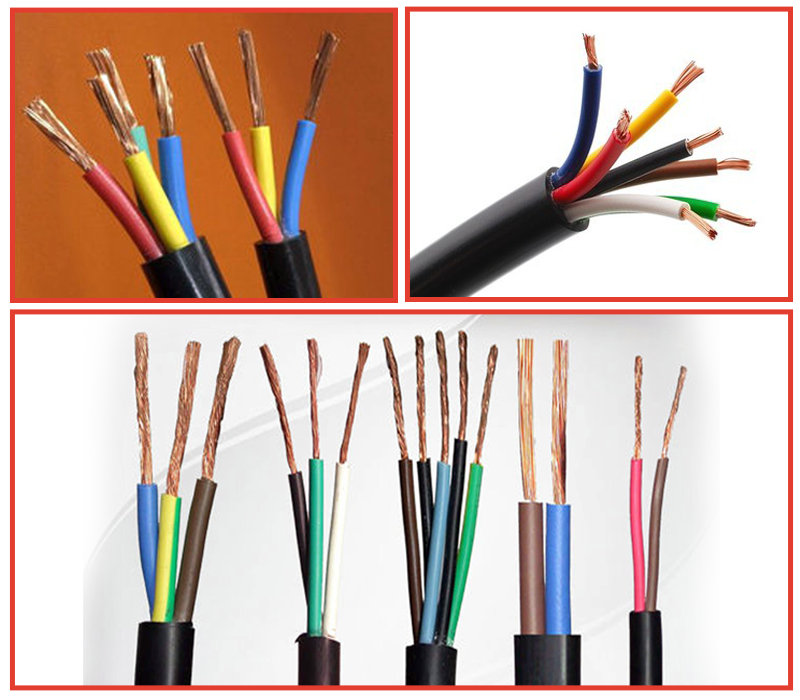

Multicore round cables are used for communication, instrumentation, audio and data transmission in the computer and other equipment. Multicore round cables protects signal fidelity by lowering noise and cross- talk in environments.

Orton multicore round cables comes with the in-house developed best in class PVC insulations, using 100% pure electrolytic grade copper to meet the requirement of the users. The PVC insulation can be customised according to the requirements like soft, super flexible, high temperature resistant, alkaline resistance etc.

S. No.	No. of Strands/nom. dia. of wire in inches	Overall dia. in mm	Max. Conductor Resistance ohm/km at 20Deg C.	Current Carrying capacity in amp
	Two Core Flat Cable	'W'x'H'
1	12/.0048	3 X 4.7	124.93	1.7
2	14/.0052	3.35 X 4.7	90.04	2.5
3	14/.0060	3.5 X 5.25	67.90	3.5
4	14/.0076	3.5 X 5.25	42.12	5
5	23/.0060	4 X 6.10	41.33	5
6	23/.0076	4 X 6.10	25.64	8
	Two Core Round Cable
7	7/.0052	3	180.07	1.5
8	14/.0048	3.5	105.40	1.8
9	14/.0052	4.65	90.04	2.5
10	14/.0060	5	67.90	3.5
11	14/.0076	5.2	42.12	5
12	23/.0060	6	41.33	5
13	23/.0076	6.20	25.64	8
14	32/.0076	6.30	42.12	12
	2.5 Core Round Cable
15	20/.0048	5.8	75.10	3
16	23/.0052	6.10	54.78	4
17	40/.0060	7.30	24.10	9
18	40/.0076	7.45	14.74	15
19	70/.0060	8.50	13.50	17
20	70/.0076	8.60	8.20	26
21	80/.0076	9.60	7.37	30
22	100/.0076	9.70	5.70	37
	Three Core cable
23	14/.0052	5.7	90.04	2.5
24	14/.0060	5.8	67.90	3.5
25	23/.0060	6.25	41.33	5
26	40/.0060	7.30	24.10	9
27	40/.0076	7.45	14.73	15
	Four Core Cable
28	7/.0060	3.7	135.8	1.6
29	23/.0048	6.5	65.30	3.5
30	23/.0052	6.7	55.10	4
31	2.5 sqmm		7.41	20
	Five Core Cable
32	14/.0048	5.45	107.76	1.7
33	14/.0052	5.45	88.10	2.5

Special wires can also be made according to customer specifications with measurements that suits you best.
